- Base unit
- PCE
- EAN/UPC code
- 4047101540703
- Gross weight
- 627
- Height
- 40
- Length
- 230
- Net weight
- 627
- Dimension unit
- MMT
- Weight unit
- GRM
- Volume
- 0.552
- Volume unit
- DMQ
- Width
- 60
- Ambient temperature max. (°C)
- 70
- Ambient temperature min. (°C)
- -40
- Approvals
- ATEX Zone 2/22, cULus, IECEx, CCC

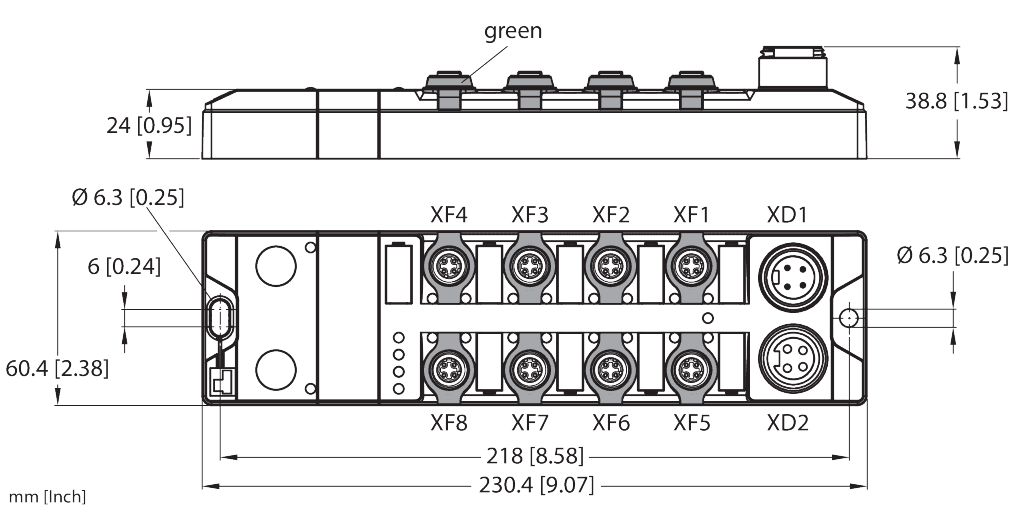

- Dimensions
- 230,4 mm x 60,4 mm x 38,8 mm
- Connection technology Ethernet
- 8 × M12, 4-pin, D-coded
- Number of Ethernet ports
- 8 ports
- Transmission rate Ethernet
- 10/100 Mbps
- Installation area
- zone 2, zone 22
- Voltage supply connection
- 7/8″, 4-pin
- Device type
- Ethernet switch
- Protection class
- IP65, IP67, IP69K
- Function
- Unmanaged
