JRBS-40-6C/EX | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

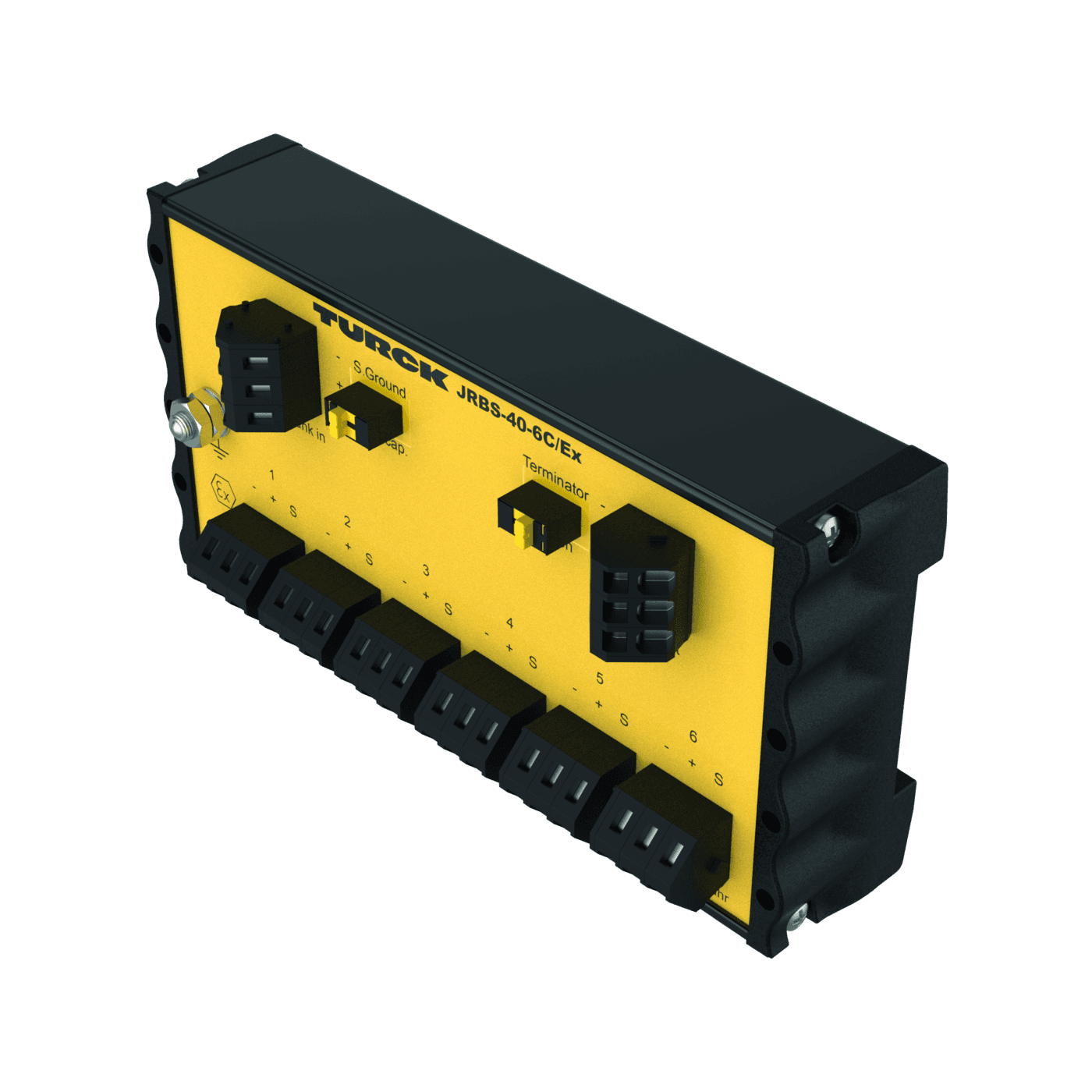

IP20 Junction Box, 6-Channel
JRBS-40-6C/EX
Order ID no. 6611449
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101203080
Gross weight
217
Height
50
Length
150
Net weight
217
Dimension unit
MMT
Weight unit
GRM
Volume
600
Volume unit
CMQ
Width
80
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
ATEX, Ex-Approval
Electrical connection
Spring type terminals
Connection technology signal
Cage clamp terminal
Application
Data

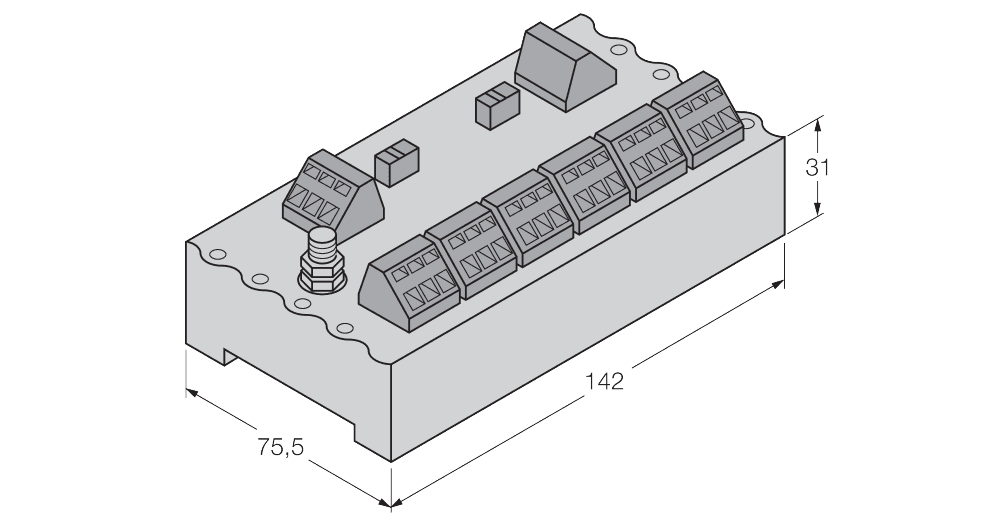

Dimensions
31 mm x 142 mm x 75,5 mm
Network protocol
FOUNDATION fieldbus, PROFIBUS-PA
Housing material
Aluminium
Installation area
zone 1, zone 2, non-Ex
Number of channels
6
Device type
Passive fieldbus junction box
Protection class
IP20
In Stock
Price Group
K3
List Price
$361.79
